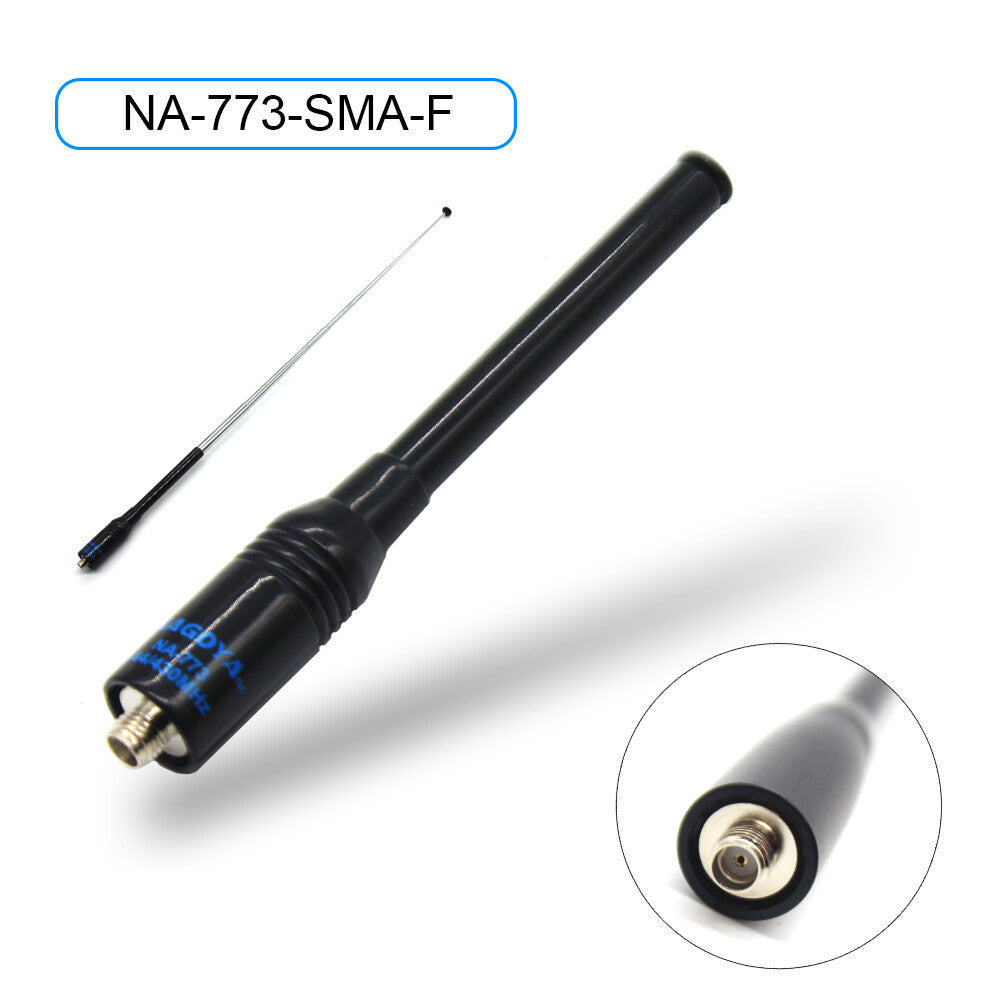

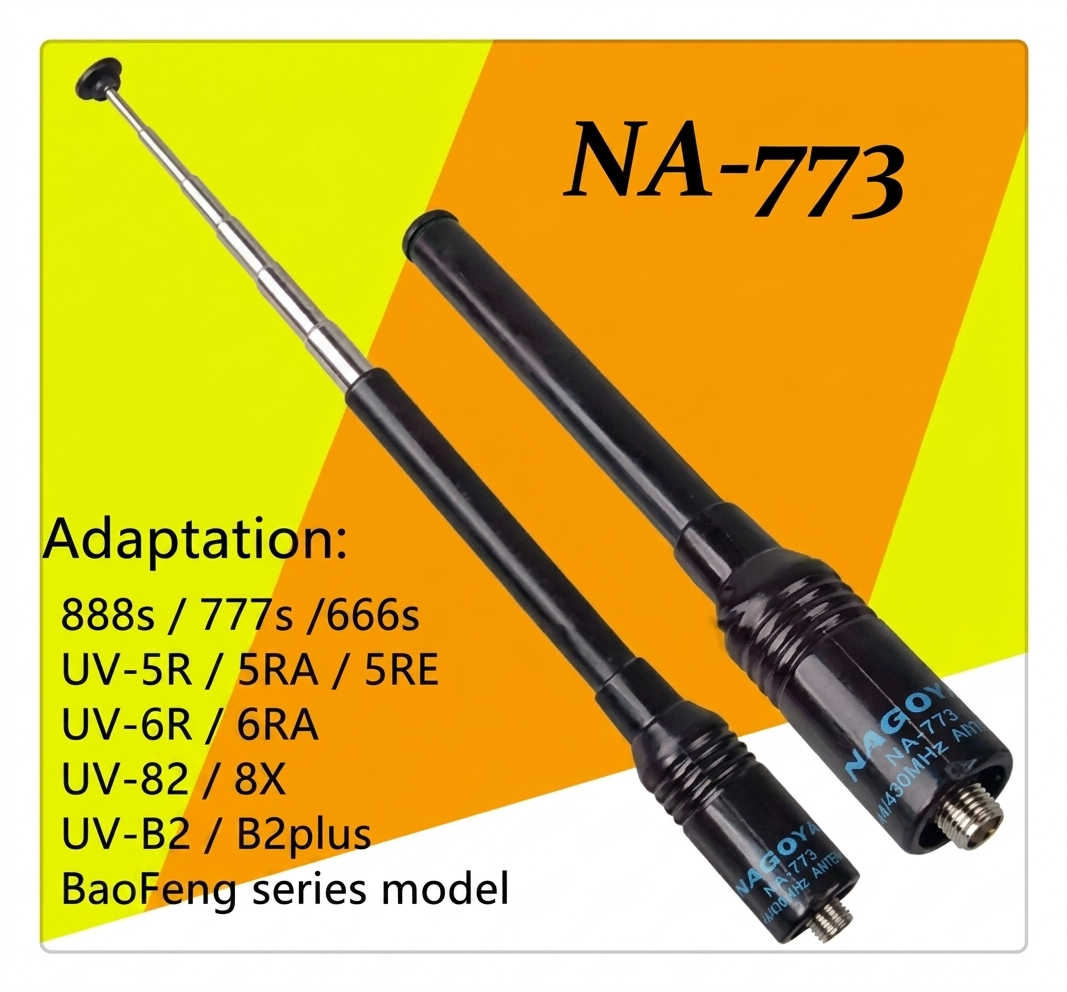

The Nagoya NA-773 is a high-performance dual-band antenna designed for VHF/UHF communication systems operating in the 144-430 MHz frequency range. Radio enthusiasts, amateur radio operators, and professional communications technicians rely on this antenna for reliable signal transmission and reception in both line-of-sight and challenging propagation conditions. This antenna solves the critical problem of weak signal strength and poor reception quality in portable two-way radio systems by providing optimized impedance matching and directional gain characteristics.

Product Overview

The Nagoya NA-773 antenna operates on the principle of a flexible whip design with internal loading coils that enable efficient resonance across both VHF (144-146 MHz) and UHF (430-440 MHz) amateur radio bands simultaneously. The antenna achieves this dual-band performance through carefully engineered coil placement and a tapered fiberglass reinforced polymer body that maintains structural integrity while reducing weight. The internal matching network ensures low VSWR (Voltage Standing Wave Ratio) across the operating frequency range, minimizing signal reflection and maximizing power transfer efficiency to the connected radio transceiver.

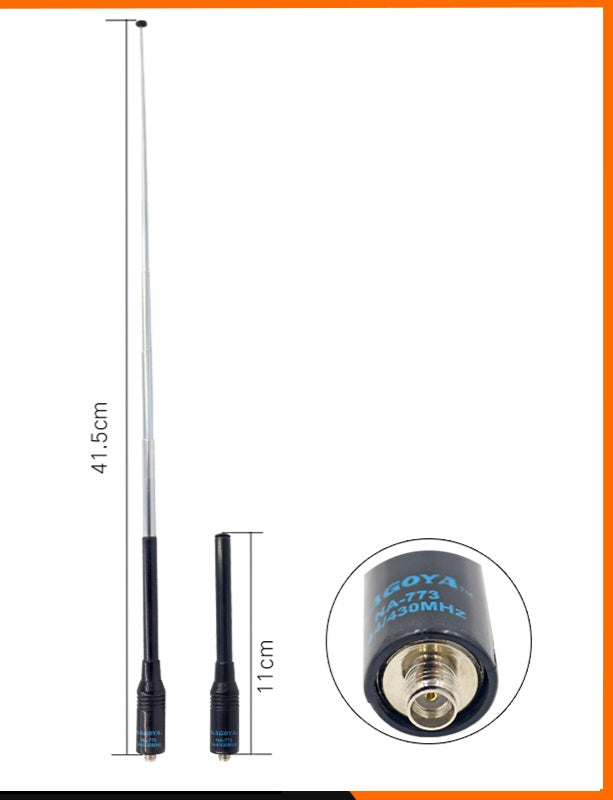

What distinguishes the NA-773 from standard rubber duck antennas is its superior gain characteristics, typically delivering 2.15 dBi on VHF and 2.8 dBi on UHF bands. The flexible construction allows for convenient portable operation while the SMA connector interface ensures compatibility with most handheld transceivers and mobile radio units. The antenna's compact 7.1-inch length makes it ideal for field operations, emergency communications, and amateur radio activities where portability without sacrificing performance is essential.

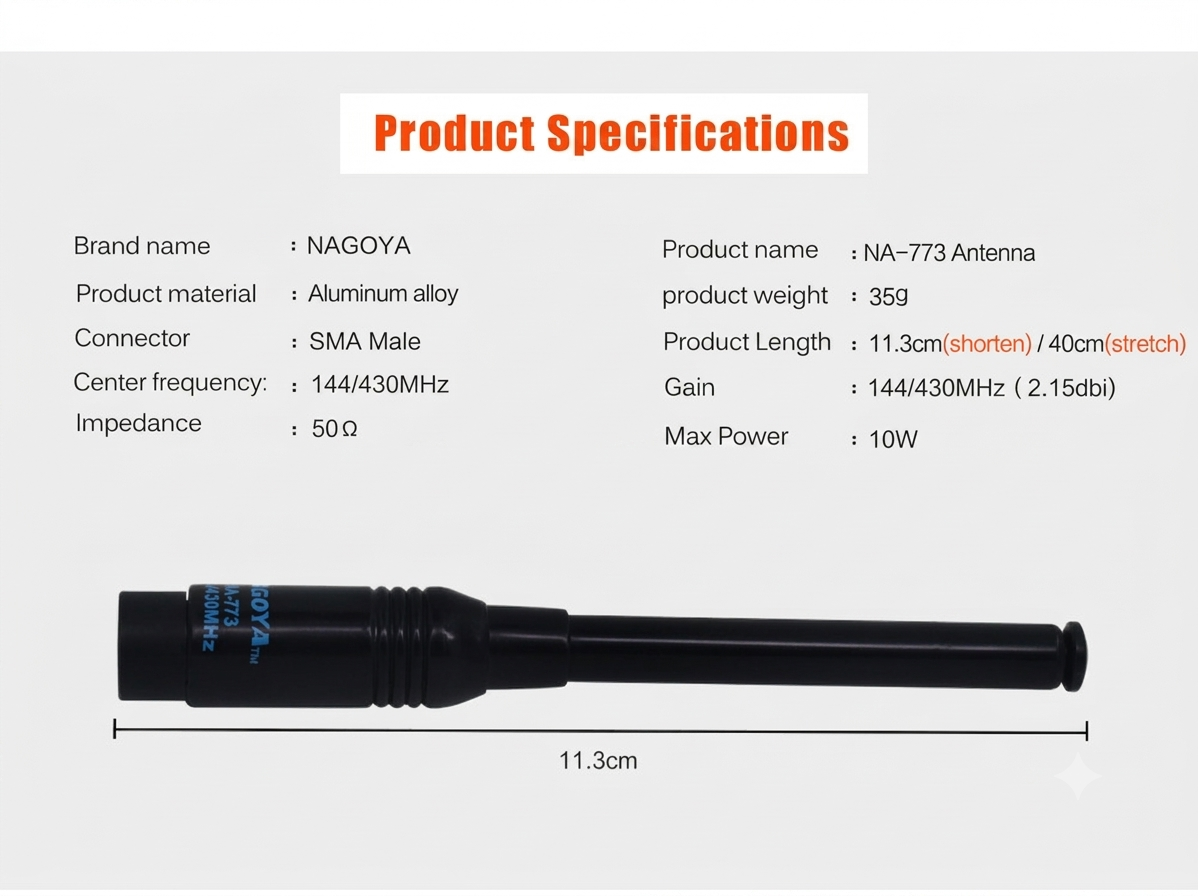

Key Specifications

Key Features

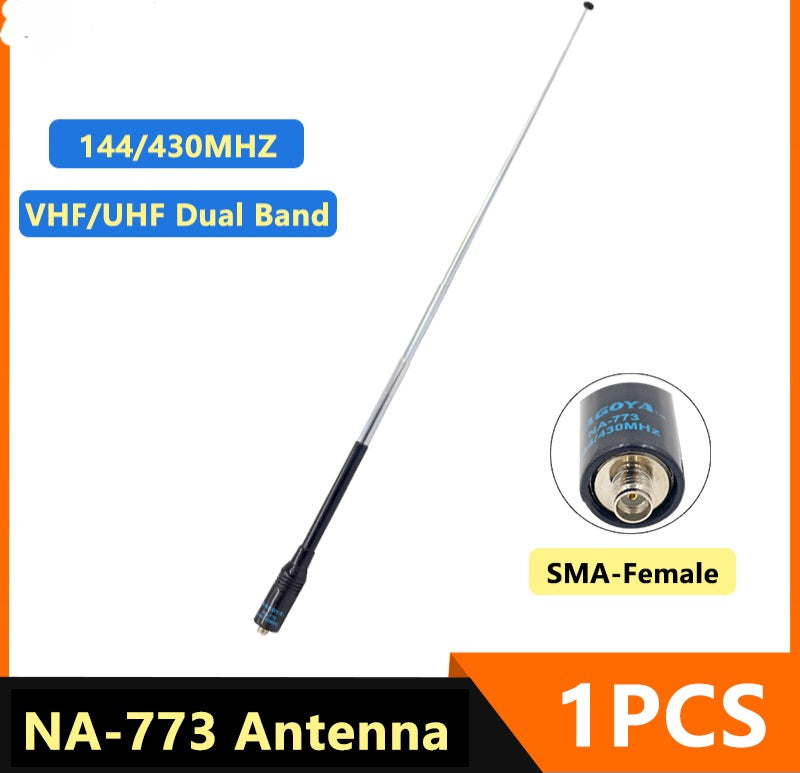

• Dual-band operation covering both 2-meter (VHF) and 70-centimeter (UHF) amateur radio bands with optimized resonance at each frequency

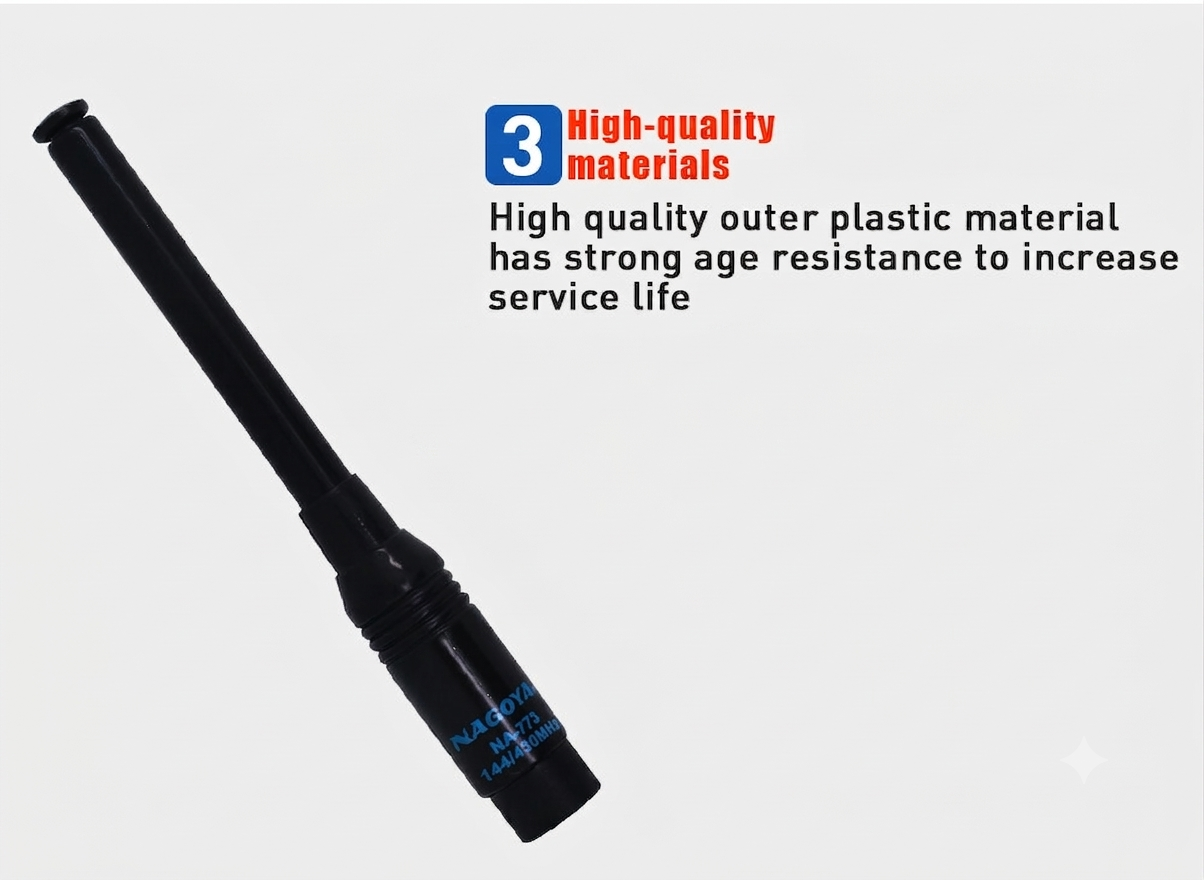

• Flexible fiberglass-reinforced polymer construction that withstands bending and flexing without performance degradation or connector damage
• Internal coil loading design that enables compact 7.1-inch form factor while maintaining superior gain characteristics compared to standard rubber duck antennas
• Low VSWR matching network ensuring efficient power transfer and minimal signal reflection across the entire operating frequency spectrum
• SMA male connector compatible with all modern handheld transceivers, mobile radios, and communication equipment using standard SMA interfaces
• Weather-resistant construction suitable for outdoor field operations, emergency communications, and extended portable use

Applications and Use Cases

• Amateur radio operations (ham radio) for VHF/UHF band communications, repeater access, and long-distance propagation experiments with improved signal strength
• Emergency and disaster response communications where portable dual-band capability is essential for coordinating relief efforts and maintaining contact with base stations
• Field surveys and outdoor technical work requiring reliable two-way radio communication with superior reception in challenging terrain and urban canyon environments
• Handheld transceiver upgrades for professionals in search and rescue, forestry, construction, and security operations needing extended communication range
• Radio enthusiast projects and antenna experimentation for studying propagation characteristics and optimizing portable radio system performance

How to Use

Installation of the Nagoya NA-773 is straightforward: simply screw the SMA male connector onto your handheld transceiver or mobile radio unit's antenna port in a clockwise direction until snug, ensuring proper mechanical and electrical contact. The antenna can be oriented vertically for omnidirectional radiation patterns typical of portable operations, or adjusted at various angles for specific propagation conditions. For optimal performance, maintain at least 6 inches of clearance from your body and metallic objects during transmission, as these can detune the antenna and reduce effective radiated power.

Before first use, verify that your radio transceiver is properly tuned to your intended frequency within the 144-146 MHz or 430-440 MHz bands. If using the antenna with a new radio, perform a quick range test at known distances to establish baseline performance. The flexible design allows convenient storage and portability, but avoid repeatedly flexing the antenna at the connector base to prevent fatigue failure. For extended outdoor use, consider protecting the SMA connector with a small rubber cap when not in active operation to prevent moisture ingress and corrosion.
